Product Summary

The APXE100ARA221MH70G is a conductive polymer aluminum solid capacitor.

Parametrics

APXE100ARA221MH70G absolute maximum ratings: (1)Category Temperature Range: -55 to +105℃; (2)Rated Voltage Range: 2.5 to 16Vdc; (3)Capacitance Tolerance: ±20% (M); (4)Surge Voltage: Rated voltage×1.15; (5)Leakage Current: Shall not exceed values shown in STANDARD RATINGS; (6)Dissipation Factor (tanδ): 0.12 max.

Features

APXE100ARA221MH70G features: (1)Super low ESR, impedance and high heat resistance have been obtained by using conductive polymer as electrolyte (ESR and rated ripple current values are improved from PXA series.); (2)Rated voltage range : 2.5 to 16Vdc, Capacitance range : 33 to 2,700F; (3)Suitable for DC-DC converters, voltage regulators and decoupling applications used on computer motherboards etc; (4)RoHS Compliant; (5)Halogen Free.

Diagrams

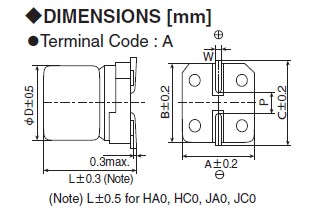

APXE100ARA221MH70G circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
APXE100ARA221MH70G
APXE100ARA221MH70G
United Chemi-Con
Aluminum Organic Polymer Capacitors 220uF 10V 20%
Data Sheet
0-1000: $0.51
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
APXE100ARA221MH70G
APXE100ARA221MH70G
United Chemi-Con
Aluminum Organic Polymer Capacitors 220uF 10V 20%
Data Sheet
0-1000: $0.51
APXE100ARA471MJ80G
APXE100ARA471MJ80G

CAP ALUM 470UF 10V 20% SMD
Data Sheet
0-5: $1.57
5-10: $1.30
10-25: $1.24
25-100: $1.15
100-250: $1.07
APXE100ARA680ME61G
APXE100ARA680ME61G

CAP ALUM 68UF 10V 20% SMD
Data Sheet
0-5: $0.75
5-10: $0.62
10-25: $0.56
25-100: $0.50
100-250: $0.44
250-500: $0.41
APXE2R5ARA102MH80G
APXE2R5ARA102MH80G

CAP ALUM 1000UF 2.5V 20% SMD
Data Sheet
Negotiable
APXE2R5ARA122MJ80G
APXE2R5ARA122MJ80G

CAP ALUM 1200UF 2.5V 20% SMD
Data Sheet
Negotiable
APXE2R5ARA152MHC0G
APXE2R5ARA152MHC0G

CAP ALUM 1500UF 2.5V 20% SMD
Data Sheet
Negotiable
