Product Summary

The ELXV250ELL102MK25S is a miniature aluminum electrolytic capacitor.

Parametrics

ELXV250ELL102MK25S specifications: (1)Category Temperature Range: -55 to +105℃; (2)Rated Voltage Range: 6.3 to 100Vdc; (3)Capacitance Tolerance: ±20% (M); (4)Leakage Current: I=0.01CV or 3uA, whichever is greater. Where, I : Max. leakage current (MA), C : Nominal capacitance (uF), V : Rated voltage (V); (5)Low Temperature Characteristics: Capacitance change △C (-55℃ /+20℃) 0.7min; Max. impedance ratio (-55℃ /+20℃), 3max.(6.3Vdc : 4max.).

Features

ELXV250ELL102MK25S features: (1)Low impedance; (2)Endurance with ripple current : 2,000 to 5,000 hours at 105C; (3)Solvent resistant type (see PRECAUTIONS AND GUIDELINES); (4)RoHS Compliant.

Diagrams

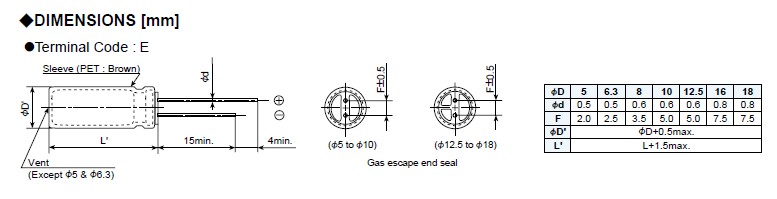

ELXV250ELL102MK25S dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ELXV250ELL102MK25S
ELXV250ELL102MK25S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 1000UF 25V
Data Sheet
0-1: $0.29
1-1000: $0.16
1000-3000: $0.16
3000-10000: $0.15
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ELXV100ETD102MJ20S
ELXV100ETD102MJ20S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 1000UF 10V
Data Sheet
0-1: $0.28
1-800: $0.23
800-1600: $0.21
1600-4000: $0.19
ELXV101ELL471ML40S
ELXV101ELL471ML40S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 470UF 100V
Data Sheet
0-1: $1.11
1-25: $1.00
25-100: $0.93
100-250: $0.86
ELXV101ELL221MK35S
ELXV101ELL221MK35S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 220UF 100V
Data Sheet
0-1: $0.70
1-500: $0.35
500-1000: $0.34
1000-1500: $0.32
ELXV101ELL681MM40S
ELXV101ELL681MM40S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 680UF 100V
Data Sheet
0-1: $1.33
1-250: $0.67
250-500: $0.60
500-1250: $0.58
ELXV101ELL270MJC5S
ELXV101ELL270MJC5S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 27UF 100V
Data Sheet
0-1: $0.44
1-2000: $0.11
2000-4000: $0.10
4000-10000: $0.10
ELXV160ETD122MJ30S
ELXV160ETD122MJ30S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 1200UF 16V
Data Sheet
0-1: $0.40
1-800: $0.34
800-1600: $0.30
1600-4000: $0.26
