Product Summary

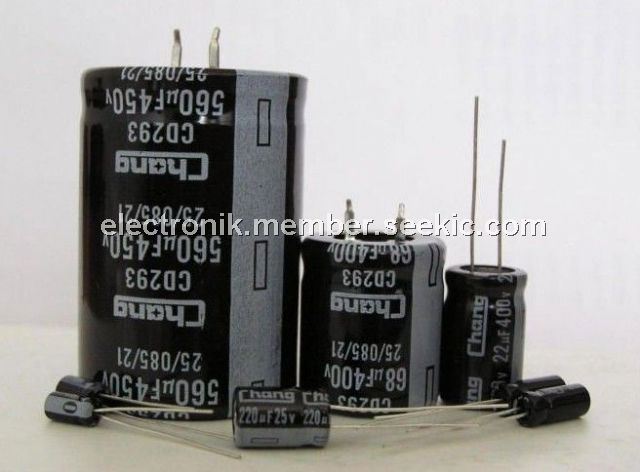

The KMF200VB10M10X16 is a High Temp Electrolytic Capacitor. The device is designed for low impedances at high frequencies with the case sizes of the KME general purpose capacitors. The KMF200VB10M10X16 will operate over a wide temperature range, -55℃ to 105℃, with a load life of between 2,000 and 5,000 hours with the rated ripple current applied, depending on the case size.
Parametrics
KMF200VB10M10X16 absolute maximum ratings: (1)Capacitance: 6800 uF; (2)Tolerance: 20 %; (3)Voltage Rating: 25 Volts; (4)Operating Temperature Range: - 55 C to + 105℃; (5)Termination Style: Radial; (6)Dimensions: 18 mm Dia. x 40 mmL; (7) Packaging: Bulk ; (8)Lead Spacing: 7.5 mm.
Features
KMF200VB10M10X16 features: (1)Miniature; (2)Solvent Proof; (3)Low Impedance; (4)Long Life; (5)105℃ Maximum Temperature.

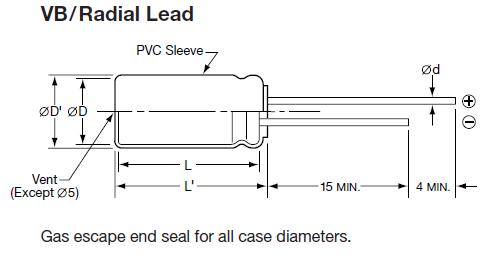

Diagrams
 |
