Product Summary

The MBRS340T3G is a Surface Mount Schottky Power Rectifier. This device employs the Schottky Barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. The MBRS340T3G is ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes, in surface mount applications where compact size and weight are critical to the system.

Parametrics

MBRS340T3G absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 40V; (2)Working Peak Reverse Voltage, VRWM: 40V; (3)DC Blocking Voltage, VR: 40V; (4)Average Rectified Forward Current, IF(AV): 3.0A @ TL = 110℃; 4.0A @ TL = 105℃; (5)Nonrepetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60 Hz), IFSM: 80A; (6)Storage Temperature Range, Tstg: -65 to +150℃; (7)Operating Junction Temperature, TJ: -65 to +150℃.

Features

MBRS340T3G features: (1)Small Compact Surface Mountable Package with J-Bend Leads; (2)Rectangular Package for Automated Handling; (3)Highly Stable Oxide Passivated Junction; (4)Excellent Ability to Withstand Reverse Avalanche Energy Transients; (5)Guard-Ring for Stress Protection; (6)NRVBS Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable; (7)These are Pb-Free Devices.

Diagrams

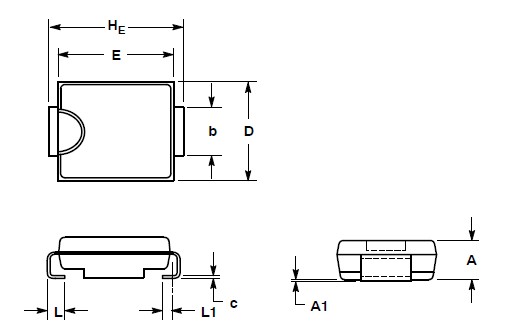

MBRS340T3G circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MBRS340T3G
MBRS340T3G
ON Semiconductor
Schottky (Diodes & Rectifiers) 3A 40V
Data Sheet
0-1: $0.32
1-25: $0.24
25-100: $0.20
100-500: $0.15
