Product Summary

The UHN0J102MPD is a kind of aluminum electrolytic capacitor.

Parametrics

UHN0J102MPD absolute maximum ratings: (1)Category Temperature: -25 to +105℃; (2)Rated Voltage Range: 6.3 to 16V; (3)Rated Capacitance Range: 330 to 8200μF; (4)Capacitance Tolerance: ±20% (120Hz, 20℃); (5)Leakage Current: After 2 minutes application of rated voltage, leakage current is less than 0.03CV.

Features

UHN0J102MPD features: (1)Lower impedance than HM series; (2)Compliant to the RoHS directive (2002/95/EC).

Diagrams

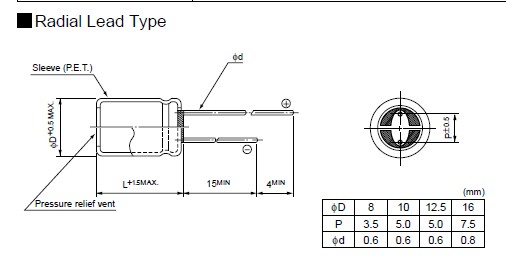

UHN0J102MPD circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UHN0J102MPD
UHN0J102MPD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 6.3volts 1000uF 8x15 20% 3.5LS
Data Sheet
0-1: $0.30
1-10: $0.24
10-100: $0.20
100-500: $0.16
UHN0J102MPD6
UHN0J102MPD6
Nichicon
Aluminum Electrolytic Capacitors - Leaded 6.3volts 1000uF 10x12.5 '20% 5LS
Data Sheet
0-1: $0.36
1-10: $0.26
10-100: $0.17
100-500: $0.12
