Product Summary

The UHN0J332MPD is a kind of aluminum electrolytic capacitor.

Parametrics

UHN0J332MPD absolute maximum ratings: (1)Category Temperature: -25 to +105℃; (2)Rated Voltage Range: 6.3 to 16V; (3)Rated Capacitance Range: 330 to 8200μF; (4)Capacitance Tolerance: ±20% (120Hz, 20℃); (5)Leakage Current: After 2 minutes application of rated voltage, leakage current is less than 0.03CV.

Features

UHN0J332MPD features: (1)Lower impedance than HM series; (2)Compliant to the RoHS directive (2002/95/EC).

Diagrams

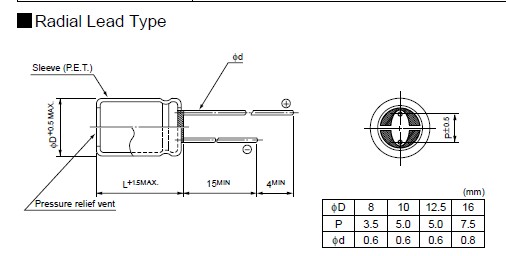

UHN0J332MPD circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UHN0J332MPD
UHN0J332MPD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 6.3volts 3300uF 10x25 20%
Data Sheet
0-1: $0.85
1-100: $0.43
100-500: $0.40
500-1000: $0.36
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UHN0J152MPD6
UHN0J152MPD6
Nichicon
Aluminum Electrolytic Capacitors - Leaded 6.3volts 1500uF 8x20 20% 3.5LS
Data Sheet
0-1: $0.43
1-10: $0.34
10-100: $0.26
100-500: $0.18
UHN0J182MPD
UHN0J182MPD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 6.3volts 1800uF 10x16 20% 5LS
Data Sheet
0-1: $0.49
1-10: $0.39
10-100: $0.32
100-500: $0.21
UHN0J332MPD
UHN0J332MPD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 6.3volts 3300uF 10x25 20%
Data Sheet
0-1: $0.85
1-100: $0.43
100-500: $0.40
500-1000: $0.36
UHN0J822MHD
UHN0J822MHD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 6.3volts 8200uF 16x25 20% 7.5LS
Data Sheet
Negotiable
UHN0J472MHD
UHN0J472MHD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 6.3volts 4700uF 12.5x20 20% 5LS
Data Sheet
Negotiable
UHN0J562MHD
UHN0J562MHD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 6.3volts 5600uF 12.5x25 20% 5LS
Data Sheet
Negotiable
