Product Summary
The WSL0603R0250FEA is a Power Metal Strip Resistor.
Parametrics
WSL0603R0250FEA absolute maximum ratings: (1)Temperature coefficient: ± 75 ppm/℃ for 7 mΩ to 0.5 Ω, ± 110 ppm/℃ for 5 mΩ to 6.9 mΩ, ± 150 ppm/℃ for 3 mΩ to 4.9 mΩ, ± 275 ppm/℃ for 1 mΩ to 2.9 mΩ, ± 400 ppm/℃ for 0.5 mΩ to 0.99 mΩ; (2)Operating temperature range: - 65 to + 170 ℃; (3)Maximum working voltage: (P x R)1/2 V.
Features
WSL0603R0250FEA features:(1)Ideal for all types of current sensing, voltage division and pulse applications including switching and linear power supplies, instruments, power amplifiers; (2)Proprietary processing technique produces extremely low resistance values (down to 0.0005Ω); (3)All welded construction; (4)Solderable terminations; (5)Very low inductance 0.5 nH to 5 nH; (6)Excellent frequency response to 50 MHz; (7)Low thermal EMF (< 3 μv/℃); (8)Solid metal nickel-chrome or manganese-copper alloy resistive element with low TCR (< 20 ppm/℃); (9)AEC-Q200 qualified available.

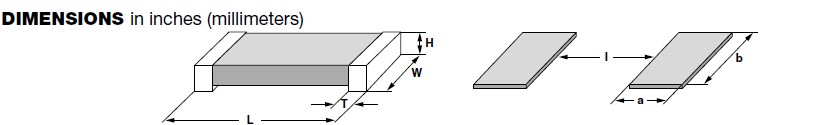

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 WSL0603R0250FEA |
Vishay/Dale |
Current Sense Resistors - SMD 1/10watt .025ohms 1% |
Data Sheet |
|
|
||||||||||||
|
WSL0603R0250FEA18 |
Vishay/Dale |
Current Sense Resistors - SMD .2watt .025ohms 1% |
Data Sheet |
|
|
||||||||||||
