Product Summary

The C0603X151J5GACTU is a Capacitor.

Parametrics

C0603X151J5GACTU absolute maximum ratings: (1)Capacitance: 150 pF; (2)Chip Size: 0603; (3)Voltage: 50V; (4)Temperature Coefficient: C0G; (5)Tolerance: +/-5%; (6)Application: Std Chip/Flexible Termination; (7)Termination Type: Tin; (8)Marked: No; (9)Temperature Range: -55/+125℃; (10)Dissipation Factor: 0.1%; (11)Insulation Resistance: 100 GOhm; (12)Dielectric Strength: 125V.

Features

C0603X151J5GACTU features: (1)Capacitance 150pF; (2)Voltage - Rated 50V; (3)Tolerance ±5%; (4)Temperature Coefficient C0G, NP0; (5)Mounting Type Surface Mount, MLCC; (6)Operating Temperature -55 ~ 125℃; (7)Package / Case 0603 (1608 Metric); (8)Size / Dimension 0.063" L × 0.031" W (1.60mm x 0.80mm); (9)Thickness (Max) 0.034" (0.87mm); (10)Features Soft Termination; (11)Packaging Cut Tape (CT).

Diagrams

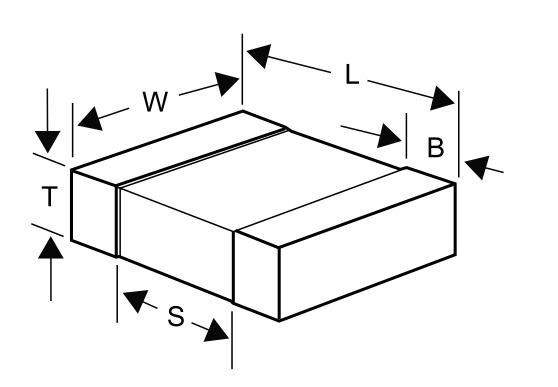

C0603X151J5GACTU dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
C0603X151J5GACTU
C0603X151J5GACTU
Kemet
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 50volts 150pF 5% C0G
Data Sheet
0-1: $0.20
1-50: $0.13
50-100: $0.07
100-500: $0.06
