Product Summary
The C0603Y681K5RACTU is a Flexible Termination capacitor (FF-CAP).The C0603Y681K5RACTU exhibits a predictable change in capacitance with respect to time and voltage and boast a minimal change in capacitance with reference to ambient temperature. Capacitance change is limited to ±15% from -55℃ to +125℃. Typical applications of C0603Y681K5RACTU include circuits with a direct battery or power source connection, critical and safety relevant circuits without (integrated) current limitation and any application that is subject to high levels of board flexure or temperature cycling. Examples include raw power input side filtering (power plane/bus), high current applications (automobile battery line) and circuits that cannot be fused to open. Markets include consumer, medical, industrial (power supply), automotive, aerospace and telecom.
Parametrics
C0603Y681K5RACTU absolute maximum ratings: (1)Capacitance: 680pF; (2)Tolerance: 10%; (3)Voltage Rating: 50Volts; (4 Temperature Coefficient/ Code: X7R; (5) Operating Temperature Range: -55℃ to +125℃; (6)Termination Style: SMD/ SMT.
Features
C0603Y681K5RACTU features: (1)-55℃ to +125℃ operating temperature range; (2)Superior flex performance (up to 5mm); (3)Floating Electrode/fail open design; (4)Low to mid capacitance flex mitigation; (5)Pb-Free and RoHS compliant; (6)EIA 0603, 0805, 1206, 1210, and 1812 case sizes; (7)DC voltage ratings of 6.3V, 10V, 16V, 25V, 50V, 100V, 200V and 250V; (8)Capacitance offerings ranging from 180pF to 0.22μF; (9)Available capacitance tolerances of ±5%, ±10% and ±20%; (10)Non-polar device, minimizing installation concerns; (11)100% pure matte tin-plated termination finish allowing for excellent solderability; (12)SnPb termination finish option available upon request (5% min).

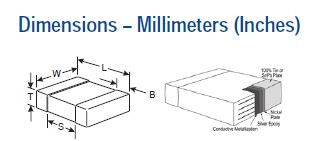

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 C0603Y681K5RACTU |
Kemet |
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 50volts 680pF 10% X7R |
Data Sheet |
|
|
||||||||||||
