Product Summary
The C0805S103K1RACAUTO KEMET Floating Electrode (FE-CAP) multilayer ceramic capacitor in X7R dielectric utilizes a cascading internal electrode design configured to form multiple capacitors in series within a single monolithic structure. This unique configuration results in enhanced voltage and ESD performance over standard capacitor designs while allowing for a fail-open condition if mechanically damaged (cracked). Typical applications of C0805S103K1RACAUTO include circuits with a direct battery or power source connection, critical and safety relevant circuits without (integrated) current limitation and any application that is subject to high levels of board flexure or temperature cycling. Examples include raw power input side filtering (power plane/bus), high current applications (automobile battery line) and circuits that cannot be fused to open. Markets include consumer, medical, industrial (power supply), automotive, aerospace and telecom.
Parametrics
C0805S103K1RACAUTO absolute maximum ratings: (1)Operating Temperature Range: -55℃ to +125℃; (2)Capacitance Change with Reference to +25℃ and 0 VDC Applied (TCC): ±15%; (3)Aging Rate (Maximum % Capacitance Loss/Decade Hour): 3.0%; (4)Dielectric Withstanding Voltage (DWV): 250% of rated voltage (5 ±1 seconds and charge/discharge not exceeding 50 mA); (5)Dissipation Factor (DF) Maximum Limit @ 25℃: 5% (6.3 and 10 V), 3.5% (16 and 25 V) and 2.5% (50 to 250 V).
Features
C0805S103K1RACAUTO features: (1)-55℃to +125℃ operating temperature range; (2)Floating Electrode/fail open design; (3)Low to mid capacitance flex mitigation; (4)Pb-Free and RoHS Compliant; (5)EIA 0402, 0603, 0805, 1206, 1210, and 1812 case sizes; (6)DC voltage ratings of 6.3 V, 10 V, 16 V, 25 V, 50 V, 100 V, 200 V, and 250 V.

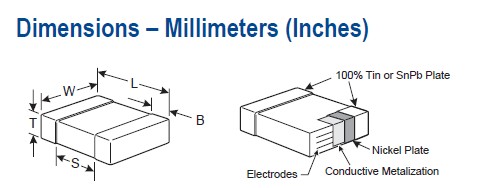

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 C0805S103K1RACAUTO |
Kemet |
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 0.01uF 100volts 10% X7R |
Data Sheet |
|
|
||||||||||||
