Product Summary
The C1812H104J5GACT500 is a high temperature surface mount C0G Multilayer Ceramic Capacitor (MLCC). It features a robust, proprietary base metal dielectric system that offers industry-leading performance relative to capacitance and case size combined with capacitance stability at extreme temperatures up to +200℃. This new platform promotes downsizing opportunities of existing high temperature C0G technology, and offers replacement opportunities of existing X7R, BX and BR dielectric technologies. Typical applications of the C1812H104J5GACT500 include critical timing, tuning, circuits requiring low loss, circuitswith pulse, high current, decoupling, bypass, filtering, transient voltage suppression, blocking and energy storage for use in extreme environments such as down-hole exploration, aerospace engine compartments and geophysical probes.
Parametrics
C1812H104J5GACT500 absolute maximum ratings: (1)Operating Temperature Range: -55℃ to +200℃; (2)Capacitance Change with Reference to +25℃ and 0 VDC Applied (TCC): ±30 ppm/℃ (up to +200℃); (3)Aging Rate (Maximum % Capacitance Loss/Decade Hour): 0%; (4)Dielectric Withstanding Voltage (DWV): 250% of rated voltage (5 ±1 second and charge/discharge not exceeding 50 mA); (5)Dissipation Factor (DF) Maximum Limit @ 25℃: 0.1%; (6)Insulation Resistance (IR) Limit @ 25℃: 1,000 megohm microfarads or 100 GΩ; (7)Insulation Resistance (IR) Limit @ 200℃ : 1,000 megohm microfarads or 100 GΩ (Rated voltage applied for 120 ±5 seconds @ 25℃).
Features
C1812H104J5GACT500 features: (1)-55 to +200℃ operating temperature range; (2)RoHS Compliant; (3)EIA 0402, 0603, 0805, 1206, 1210, 1812, and 2220 case sizes; (4)DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V, and 200 V; (5)Capacitance offerings ranging from 0.5 pF up to 0.47 μF; (6)Available capacitance tolerances of ±0.10 pF, ±0.25 pF, ±0.5 pF, ±1%, ±2%, ±5%, ±10% or ±20%; (7)No piezoelectric noise.

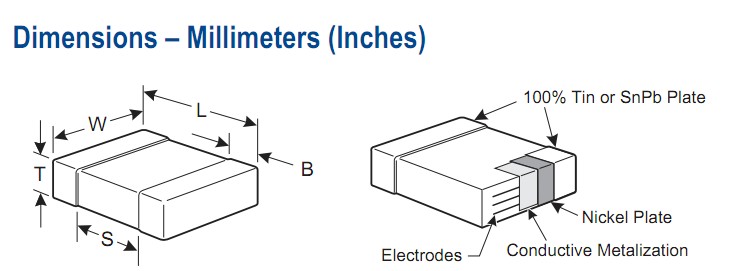

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 C1812H104J5GACT500 |
Kemet |
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 50volts 0.1uF 5% 200 Degree C |
Data Sheet |
|
|
||||||||||||
