Product Summary

The TCSCS1A336MBAR is a Miniaturized Tantalum Chip Capacitor.

Parametrics

TCSCS1A336MBAR absolute maximum ratings: (1)Capacitance Value: 10 μF; (2)Voltage: 16 Vdc; (3)Tolerance: 20 %; (4)Case Code: A; (5)Case Style: Molded; (6)Equivalent Series Resistance: 3 Ohm; (7)Product Length: 3.2 mm; (8)Product Height: 1.6 mm; (9)Maximum Operating Temperature: 125℃; (10)Construction: Flat; (11)Minimum Operating Temperature: -55℃.

Features

TCSCS1A336MBAR features: (1)Molded case available in four case codes; (2)New low profile size; (3)Compatible with automatic pick and place equipment; (4)Meets or exceeds EIA standard 535BAAC; (5)Environment-Friendly(Pb-free) tantalum capacitor.

Diagrams

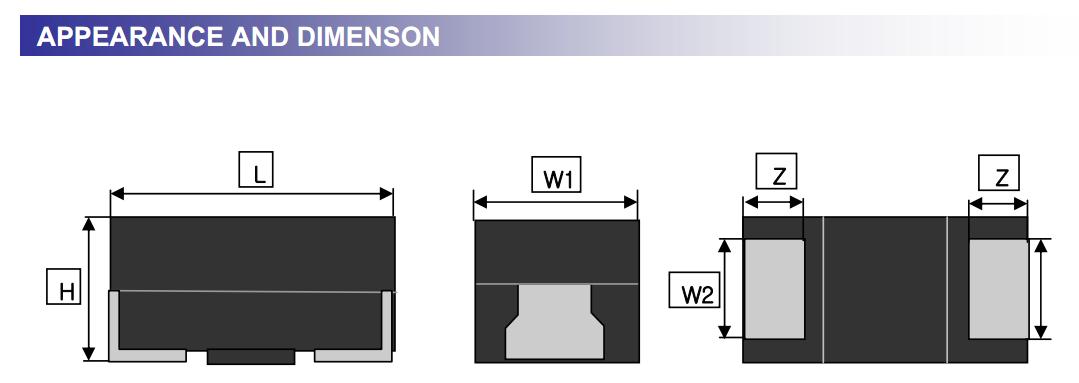

TCSCS1A336MBAR dimensions
