Product Summary

The EEE-FK1H221GP is an Aluminum Electrolytic Capacitor.

Parametrics

EEE-FK1H221GP absolute maximum ratings: (1)Category Temp. Range: –55℃ to +105℃; (2)Rated W.V.Range: 6.3 V.DC to 100 V.DC; (3)Nominal Cap.Range: 3.3 μF to 6800 μF; (4)Capacitance Tolerance: ±20 % (120 Hz/+20 °C); (5)DC Leakage Current: I < 0.01 CV or 3 (μA) After 2 minutes (Whichever is greater).

Features

EEE-FK1H221GP features: (1)Endurance: 2000 h to 5000 h at 105℃; (2)Low impedance (40 % to 60 % less than FC series); (3)Miniaturized (30 % to 50 % less than FC series); (4)Vibration-proof product is available upon request. (φ8 mm and larger); (5)RoHS directive compliant.

Diagrams

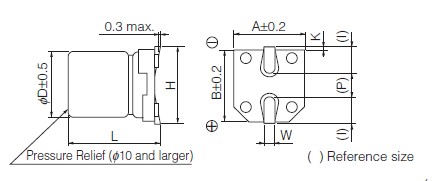

EEE-FK1H221GP circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EEE-FK1H221GP
EEE-FK1H221GP
Panasonic Electronic Components
Aluminum Electrolytic Capacitors - SMD Al Lytic Cap SMT FK Series 105C
Data Sheet
0-1: $0.61
1-25: $0.44
25-100: $0.26
100-250: $0.24
250-500: $0.21
