Product Summary
The B37987F5104K is a Multilayer Ceramic Capacitor. It is ideal for: (1)Blocking; (2)Coupling and decoupling; (3)Interference suppression.
Parametrics
B37987F5104K absolute maximum ratings: (1)Temperature characteristic: X7R; (2)Rated voltage, VR: 50, 100 VDC; (3)Test voltage, Vtest: 2,5 · VR/5 s VDC; (4)Capacitance range / E series, CR: 470 pF to 1 μF (E6); (5)Max. relative capacitance change, ΔC/C: ±15 %; (6)Dissipation factor (limit value), tan δ: < 25 · 10–3; (7)Insulation resistance at + 25℃ , Rins: > 105 MΩ; (8)Insulation resistance at +125℃ , Rins: > 104 MΩ; (9)Time constant2) at + 25℃ , τ: > 1000 s; (10)Time constant2) at +125℃ , τ: > 100 s; (11)Operating temperature range Top –55 to +125℃.
Features
B37987F5104K features: (1)High volumetric efficiency; (2)Non-linear capacitance change; (3)High insulation resistance; (4)High pulse strength.

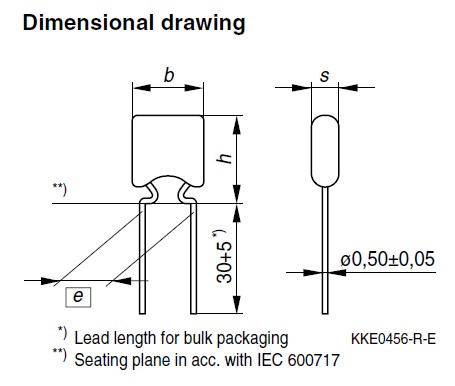

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 B37987F5104K000 |
|
CAP CER 0.1UF 50V 10% RADIAL |
Data Sheet |
Negotiable |
|
||||
 |
B37987F5104K031 |
|
CAP CER 0.1UF 50V 10% RADIAL |
Data Sheet |
Negotiable |
|
||||
|
B37987F5104K054 |
|
CAP CER 0.1UF 50V 10% RADIAL |
Data Sheet |
Negotiable |
|
||||
|
B37987F5104K058 |
|
CAP CER 0.1UF 50V 10% RADIAL |
Data Sheet |
Negotiable |
|
||||
|
B37987F5104K037 |
|
CAP CER 0.1UF 50V 10% RADIAL |
Data Sheet |
Negotiable |
|
||||
 |
B37987F5104K051 |
|
CAP CER 0.1UF 50V 10% RADIAL |
Data Sheet |
Negotiable |
|
||||
|
B37987F5104K068 |
|
CAP CER 0.1UF 50V 10% RADIAL |
Data Sheet |
Negotiable |
|
||||
