Product Summary

The EKMH451VNN471MA50S is a capacitor. It is the standard 10℃, large capacitance, snap-in capacitors from United Chemi-Con. The load life for the KMH series is 2,000 hours at 105℃ with the rated ripple current applied. The very high CV values and ripple current capabilities make these capacitors ideal for use in power supply filter circuits. The EKMH451VNN471MA50S is available in 2 or 4-pin snap-in styles and 4 or 5-pin straight terminals. The device is RoHS compliant offering Pb-free construction. The EKMH451VNN471MA50S is not solvent proof.

Parametrics

EKMH451VNN471MA50S features: (1)PC board 2 or 4-pin snap-in; optional 4 or 5-pin straight terminals.; (2)Capacitance range: 47 to 220,000μF.; (3)Voltage range: 6.3 to 450VDC.; (4)Category temperature range: -40℃ to 105℃ for 6.3 to 100V; -25℃ to 105℃ for 160 to 450V.; (5)Leakage current: 0.02CV(μA)or 3mA, whichever is smaller, after 5 minutes at 20℃.; (6)Standard capacitance tolerance: ±20%; (7)Nominal case size (DL): 22×20mm to 40×80mm.; (8)Rated lifetime: 2,000 hours at105C with the rated ripple current applied.

Features

EKMH451VNN471MA50S features: (1)Snap Mount; (2)Large Capacitance; (3)High CV; (4)High Ripple; (5)RoHS Compliant; (6)105℃ Maximum Temperature.

Diagrams

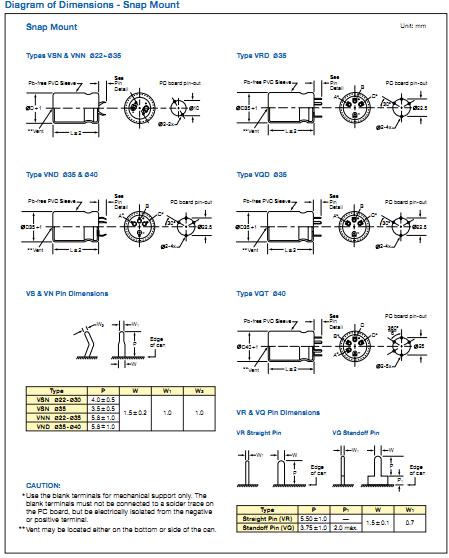

EKMH451VNN471MA50S dimensions diagram

EKMH100VNN393MR40T
EKMH100VNN393MR40T
United Chemi-Con

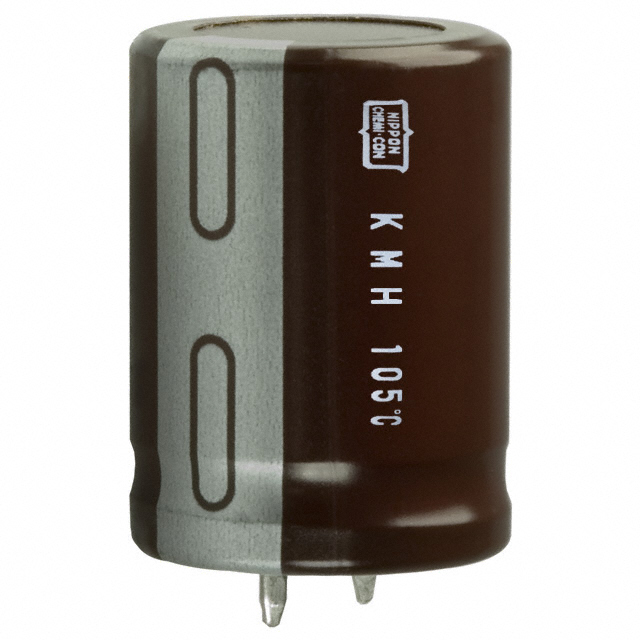

Aluminum Electrolytic Capacitors - Snap In 39KUF 10V
Data Sheet
0-1: $3.32
1-200: $2.33
200-600: $2.20
600-1000: $2.08
EKMH101VNN392MA45T
EKMH101VNN392MA45T
United Chemi-Con

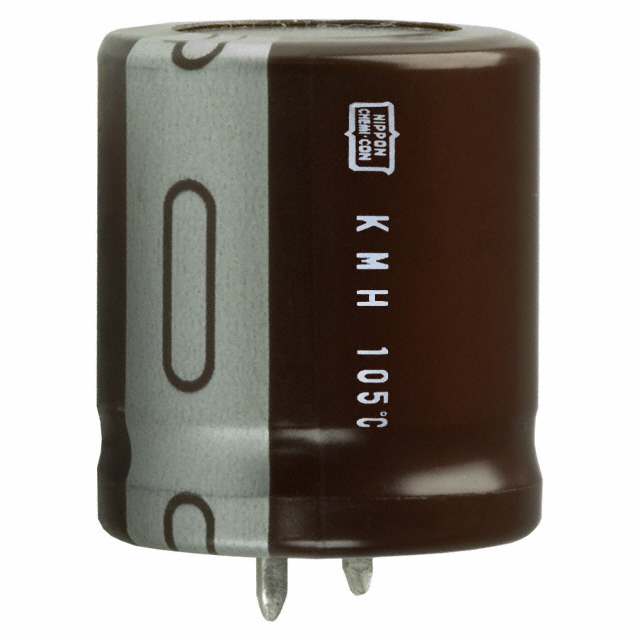

Aluminum Electrolytic Capacitors - Snap In 3900uF 100volts 20%
Data Sheet
0-1: $4.21
1-25: $3.88
25-50: $3.51
50-100: $3.20
EKMH101VNN222MQ50T
EKMH101VNN222MQ50T
United Chemi-Con

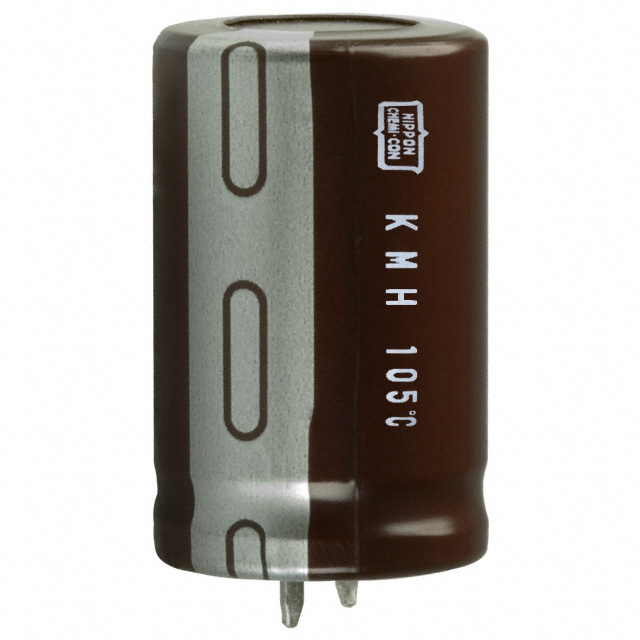

Aluminum Electrolytic Capacitors - Snap In 2200UF 100V
