Product Summary

The ELLA250ELL470ME11D is a miniature aluminum electrolytic capacitor.

Parametrics

ELLA250ELL470ME11D absolute maximum ratings: (1)Category Temperature Range: -40 to +85℃; (2)Rated Voltage Range: 6.3 to 50Vdc; (3)Capacitance Tolerance: ±20% (M); (4)Leakage Current: I=0.002CV or 0.2MA, whichever is greater.

Features

ELLA250ELL470ME11D features: (1)Endurance : 1,000 hours at 85℃; (2)Solvent resistant type (see PRECAUTIONS AND GUIDELINES); (3)Low leakage current type; (4)RoHS Compliant.

Diagrams

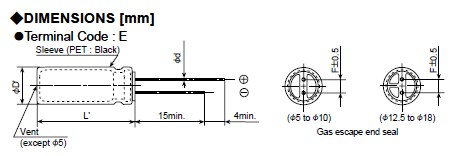

ELLA250ELL470ME11D circuit diagram
