Product Summary

The ELXV160ELL471MJ16S is a miniature aluminum electrolytic capacitor.

Parametrics

ELXV160ELL471MJ16S specifications: (1)Category Temperature Range: -55 to +105℃; (2)Rated Voltage Range: 6.3 to 100Vdc; (3)Capacitance Tolerance: ±20% (M); (4)Leakage Current: I=0.01CV or 3uA, whichever is greater. Where, I : Max. leakage current (MA), C : Nominal capacitance (uF), V : Rated voltage (V); (5)Low Temperature Characteristics: Capacitance change △C (-55℃ /+20℃) 0.7min; Max. impedance ratio (-55℃ /+20℃), 3max.(6.3Vdc : 4max.).

Features

ELXV160ELL471MJ16S features: (1)Low impedance; (2)Endurance with ripple current : 2,000 to 5,000 hours at 105C; (3)Solvent resistant type (see PRECAUTIONS AND GUIDELINES); (4)RoHS Compliant.

Diagrams

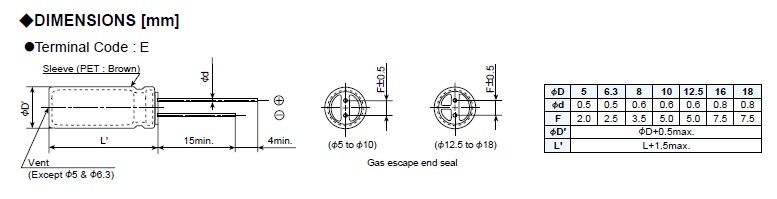

ELXV160ELL471MJ16S dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ELXV160ELL471MJ16S
ELXV160ELL471MJ16S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 470UF 16V
Data Sheet
0-1: $0.13
1-200: $0.07
200-600: $0.06
600-1000: $0.06
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ELXV160ELL681MJ20S
ELXV160ELL681MJ20S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 680UF 16V
Data Sheet
0-1: $0.25
1-200: $0.19
200-600: $0.16
600-1000: $0.15
ELXV160ELL152MK25S
ELXV160ELL152MK25S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 1500UF 16V
Data Sheet
0-1: $0.53
1-1000: $0.27
1000-3000: $0.24
3000-10000: $0.23
ELXV160ELL821MJ25S
ELXV160ELL821MJ25S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 820UF 16V
Data Sheet
0-1: $0.32
1-200: $0.16
200-600: $0.14
600-1000: $0.14
ELXV101ELL221ML25S
ELXV101ELL221ML25S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 220UF 100V
Data Sheet
0-1: $0.99
1-2000: $0.25
2000-4000: $0.23
4000-10000: $0.22
ELXV160ELL471MJ16S
ELXV160ELL471MJ16S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 470UF 16V
Data Sheet
0-1: $0.13
1-200: $0.07
200-600: $0.06
600-1000: $0.06
ELXV500ELL121MH20D
ELXV500ELL121MH20D
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 120UF 50V
Data Sheet
0-1: $0.23
1-1000: $0.12
1000-3000: $0.10
3000-10000: $0.10
