Product Summary

The GRM1885C1H100FA01D is a Chip Monolithic Ceramic Capacitor. The application of the GRM1885C1H100FA01D includes General electronic equipment.

Parametrics

GRM1885C1H100FA01D absolute maximum ratings: (1)Capacitance: 10 pF; (2)Tolerance: 1 %; (3)Voltage Rating: 50 Volts; (4)Temperature Coefficient / Code: C0G (NP0); (5)Case Code - in: 0603; (6)Operating Temperature Range: - 55℃ to + 125℃.

Features

GRM1885C1H100FA01D features: (1)Terminations are made of metal highly resistant to migration; (2)The GRM series is a complete line of chip ceramic capacitors in 6.3V, 10V, 16V, 25V, 50V, 100V, 200V and 500V ratings. These capacitors have temperature characteristics ranging from C0G to Y5V; (3)A wide selection of sizes is available, from the miniature LxWxT: 1.0x0.5x0.5mm to LxWxT: 3.2x1.6x1.15mm. GRM18, 21 and GRM31 types are suited to flow and reflow soldering GRM15 type is applied to only reflow soldering; (4)Stringent dimensional tolerances allow highly reliable, high speed automatic chip placement on PCBs; (5)The GRM series is available in paper or plastic embossed tape and reel packaging for automatic placement. Bulk case packaging is also available for GRM15, GRM18 and GRM21.

Diagrams

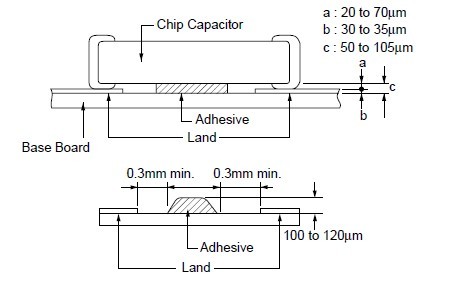

GRM1885C1H100FA01D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
GRM1885C1H100FA01D
GRM1885C1H100FA01D
Murata
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 0603 10pF 50volts C0G 1%
Data Sheet
0-1: $0.04
1-50: $0.02
50-100: $0.02
100-500: $0.02
