Product Summary

The MLF2012A1R2JT is an inductor. The applications of the MLF2012A1R2JT include Personal computers, HDDs, or other various electronic appliances.

Parametrics

MLF2012A1R2JT absolute maximum ratings: (1)Operating temperature range: –25℃ to +85℃; (2)Storage temperature range: –40℃ to +85℃(Unit of products); (3)Dimensions L×W: 2.0×1.25mm; (4) inductance: 2.7μH; (5) inductance tolerance: ±20%, ±10%; (6) Test frequency L, Q: 10MHz; (7) DC resistance: 0.75Ω; (8) rated current: 30mA.

Features

MLF2012A1R2JT features: (1)High-reliability monolithic structure; (2)Ferrite core and magnetic shielding enables the design of compact circuits with high packing density; (3)Excellent solderability and high heat resistance permits either flow or reflow soldering.

Diagrams

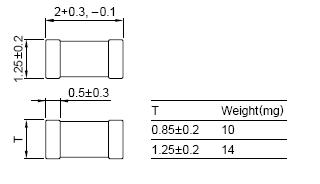

MLF2012A1R2JT Dimmension
