Product Summary

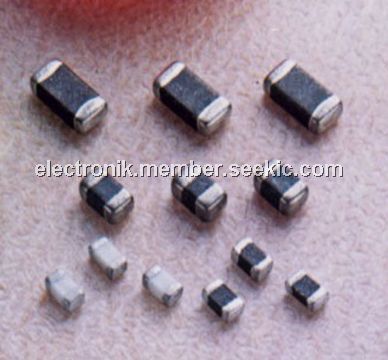

The MLK1005S1N0ST is an Inductor for High-frequency Circuit. The MLK1005S1N0ST is ideal for high-frequency applications including mobile phones, high frequency modules (PA, VCO, FEM etc.), Bluetooth, W-LAN, UWB and tuners.

Parametrics

MLK1005S1N0ST absolute maximum ratings: (1)Inductance: 1.0nH; (2)Inductance tolerance: ±5%; (3)Test frequency, L, Q: 100(MHz); (4)Self-resonant frequency: 4.7GHz; (5)DC resistance: 0.42Ω; (6)Rated current max: 350(mA).

Features

MLK1005S1N0ST features: (1)Inductance values are supported from 1 to 33nH.; (2)With the adoption of a giga-spiral laminated structure, selfresonant frequency higher than that of the MLG structure can be obtained, while the decrease of Q in the GHz band is limited; (3)Advanced monolithic structure is formed using a multilayering and sintering process with ceramic and conductive materials for high-frequency; (4)There is no directivity.; (5)The products contain no lead and also support lead-free soldering; (6)It is a product conforming to RoHS directive.

Diagrams

MLK1005S1N0ST DIMENSION
