Product Summary
The UCS2D680MHD is an aluminum electrolytic capacitor.
Parametrics
UCS2D680MHD specifications: (1)Category Temperature Range: –40 to +105℃ (160 to 400V) , –25 to +105℃ (450V); (2)Rated Voltage Range: 160 to 450V; (3)Rated Capacitance Range: 6.8 to 330μF; (4)Capacitance Tolerance: ±20% at 120Hz, 20℃.
Features
UCS2D680MHD features: (1)High ripple current and Long Life product withstanding load life of 8000 to 10000 hours at +105℃; (2)Suited for ballast application; (3)Compliant to the RoHS directive (2002/95/EC).

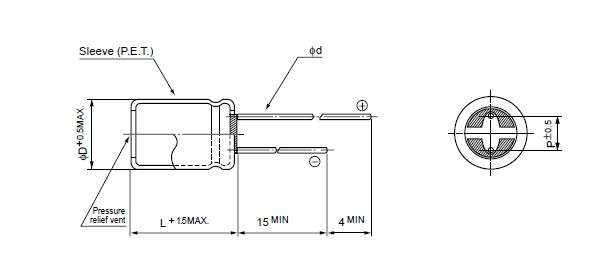

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UCS2D680MHD |
Nichicon |
Aluminum Electrolytic Capacitors - Leaded 200volts 68uF 12.5X20 20% |
Data Sheet |
Negotiable |
|
||||||||||||
 |
UCS2D680MHD1TO |
|
CAP ALUM 68UF 200V 20% RADIAL |
Data Sheet |
|
|
||||||||||||
