Product Summary

The UVZ1H472MRD is a kind of aluminum electrolytic capacitor.

Parametrics

UVZ1H472MRD absolute maximum ratings: (1)Category Temperature Range: –55 to +105℃ (6.3 to 100V) , –40 to +105℃ (160 to 400V), –25 to +105℃ (450V); (2)Rated Voltage Range: 6.3 to 450V; (3)Rated Capacitance Range: 0.1 to 33000μF; (4)Capacitance Tolerance: ±20% at 120Hz, 20℃.

Features

UVZ1H472MRD features: (1)Small case sizes as same as VR series, but operating over wide temperature range of –55 to +105℃; (2)Compliant to the RoHS directive (2002/95/EC).

Diagrams

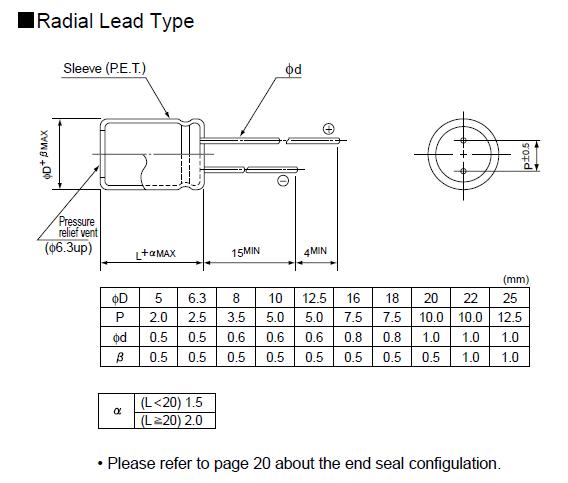

UVZ1H472MRD dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UVZ1H472MRD
UVZ1H472MRD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 50volts 4700uF 10mm '20%
Data Sheet
0-1: $1.91
1-25: $1.63
25-100: $1.49
100-200: $1.22
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UVZ1A101MDD
UVZ1A101MDD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 100uF 5x11 20% 2LS
Data Sheet
0-1: $0.10
1-25: $0.09
25-100: $0.07
100-200: $0.05
UVZ1A101MDD1TA
UVZ1A101MDD1TA
Nichicon
Aluminum Electrolytic Capacitors - Leaded 100uF 10V 105c
Data Sheet
0-1: $0.07
1-1000: $0.05
1000-2000: $0.05
2000-3000: $0.05
UVZ1A101MDD1TD
UVZ1A101MDD1TD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 100uF 10V 105c
Data Sheet
0-1: $0.05
1-1000: $0.05
1000-2000: $0.05
2000-3000: $0.05
UVZ1A101MDH1TD
UVZ1A101MDH1TD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 100UF 10V
Data Sheet
Negotiable
UVZ1A102MPD1TD
UVZ1A102MPD1TD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 1000UF 10V 105c
Data Sheet
0-1: $0.20
1-25: $0.19
25-100: $0.13
100-200: $0.11
200-500: $0.10
UVZ1A102MPH
UVZ1A102MPH
Nichicon
Aluminum Electrolytic Capacitors - Leaded
Data Sheet
Negotiable
