Product Summary

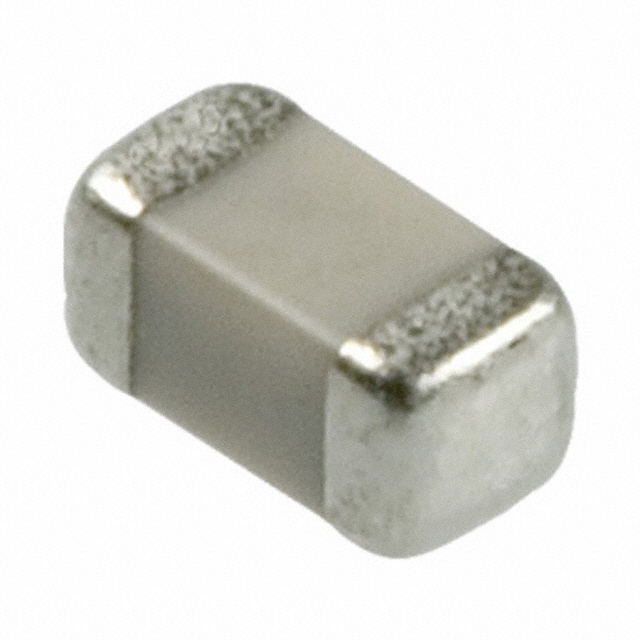

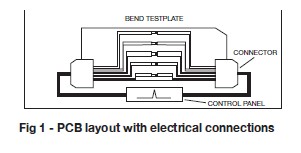

The 0603YC104KAT2A is a MLCC with FLEXITERM. FLEXITERM is designed to enhance the mechanical flexure and temperature cycling performance of a standard ceramic capacitor with an X7R dielectric. The industry standard for flexure is 2mm minimum. Using FLEXITERM, AVX provides up to 5mm of flexure without internal cracks. Beyond 5mm, the capacitor will generally fail open. The 0603YC104KAT2A is ideal for: (1)High Flexure Stress Circuit Boards; (2)Variable Temperature Applications; (3)Automotive Applications.
Parametrics
0603YC104KAT2A absolute maximum ratings: (1)Capacitance: 0.1uF; (2)Tolerance: 10 %; (3)Voltage Rating: 16volts; (4)Temperature Coefficient / Code: X7R; (5)Operating Temperature Range: - 55℃ to + 125℃.
Features
0603YC104KAT2A features: (1)High mechanical performance able to withstand, 5mm bend test guaranteed; (2)Increased temperature cycling performance, 3000 cycles and beyond; (3)Flexible termination system; (4)Reduction in circuit board flex failures; (5)Base metal electrode system; (6)Automotive or commercial grade products available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 0603YC104KAT2A |
|
CAP CER 0.1UF 16V 10% X7R 0603 |
Data Sheet |
|
|
||||||||||||||
