Product Summary

The RCWL2010R620JNEA is a Thick Film Surface Mount Chip Resistor.

Parametrics

RCWL2010R620JNEA absolute maximum ratings: (1)Operating temp. range: - 55 to + 155℃; (2)Maximum operating voltage: (P x R)1/2 V; (3)Insulation voltage Uins (1 min): > 300 V; (4)Insulation resistance: > 109 Ω; (5)Weight/1000 pieces (typical): 25.5 G.

Features

RCWL2010R620JNEA features: (1)Low resistance values (0.1 Ω to 0.91 Ω); (2)Suitable for current sensing and shunts; (3)Metal glaze on high quality ceramic; (4)Protective overglaze; (5)Solder contacts on Ni barrier layer; (6)Compliant to RoHS Directive 2002/95/EC; (7)Halogen-free according to IEC 61249-2-21 definition.

Diagrams

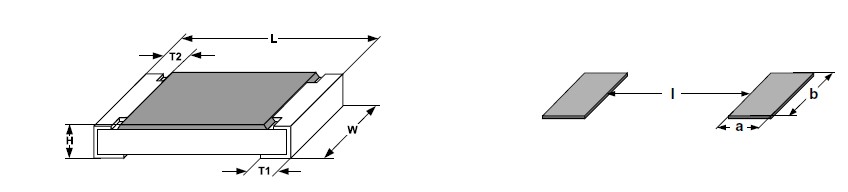

RCWL2010R620JNEA circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RCWL2010R620JNEA
RCWL2010R620JNEA
Vishay
Thick Film Resistors - SMD 1/2watt .62ohms 5% 200ppm
Data Sheet
0-1: $0.89
1-10: $0.86
10-50: $0.46
50-100: $0.27
