Product Summary

The RN732ATTD4020B25 is a thin film chip resistor.

Parametrics

RN732ATTD4020B25 absolute maximum ratings: (1)Power Rating @ 70℃: 1/10W(.10W); (2)Absolute Maximum Working Voltage: 100V; (3)Absolute Maximum Overload Voltage: 200V; (4)Operating Temperature Range: -55℃ to +125℃.

Features

RN732ATTD4020B25 features: (1)Nickel chromium thin film resistor element; (2)Marking: 1E: Black body with distinctive color marking; 1J, 2A, 2B, 2E: green body with distinctive color marking; (3)Products with lead-free terminations meet EU RoHS requirements.

Diagrams

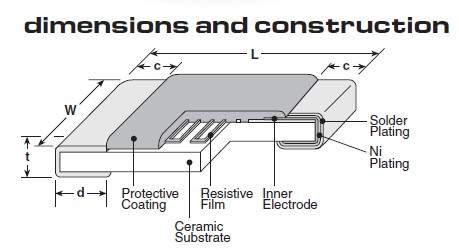

RN732ATTD4020B25 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RN732ATTD4020B25
RN732ATTD4020B25
KOA Speer
Thin Film Resistors - SMD 1/10W 402ohm 0.1% 25ppm
Data Sheet
0-1: $0.30
1-100: $0.24
100-1000: $0.13
1000-5000: $0.13
