Product Summary

The APXA160ARA820MH70G is a conductive polymer aluminum solid capacitor.

Parametrics

APXA160ARA820MH70G absolute maximum ratings: (1)Category Temperature Range: -55 to +105℃; (2)Rated Voltage Range: 2.5 to 25Vdc; (3)Capacitance Tolerance: ±20% (M); (4)Surge Voltage: Rated voltage×1.15; (5)Leakage Current: Shall not exceed values shown in STANDARD RATINGS; (6)Dissipation Factor (tanδ): 0.12 max.

Features

APXA160ARA820MH70G features: (1)Super low ESR, impedance and high heat resistance have been obtained by using conductive polymer as electrolyte; (2)Rated voltage range : 2.5 to 25Vdc, case size range : φ4x5.2L to φ10x12.2L; (3)Suitable for DC-DC converters, voltage regulators and decoupling applications used on computer motherboards etc; (4)RoHS Compliant; (5)Halogen Free.

Diagrams

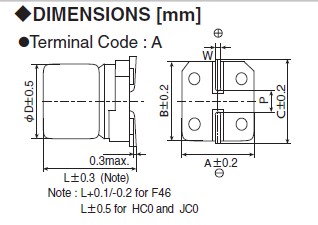

APXA160ARA820MH70G circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
APXA160ARA820MH70G
APXA160ARA820MH70G
United Chemi-Con
Aluminum Organic Polymer Capacitors 16V 82uF 8X6.7
Data Sheet
0-1: $1.32
1-10: $1.09
10-50: $1.00
50-100: $0.97
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
APXA100ARA121MH70G
APXA100ARA121MH70G
United Chemi-Con
Aluminum Organic Polymer Capacitors 10V 120uF 8X6.7
Data Sheet
0-1: $1.11
1-10: $0.91
10-50: $0.81
50-100: $0.73
APXA100ARA151MH70G
APXA100ARA151MH70G
United Chemi-Con
Aluminum Organic Polymer Capacitors 10V 150uF 8X6.7
Data Sheet
0-1: $1.11
1-10: $1.06
10-50: $0.99
50-100: $0.93
APXA100ARA271MH12G
APXA100ARA271MH12G
United Chemi-Con
Aluminum Organic Polymer Capacitors 10V 270uF 8X12
Data Sheet
0-1: $0.74
1-10: $0.63
10-50: $0.53
50-100: $0.46
APXA100ARA271MHC0G
APXA100ARA271MHC0G
United Chemi-Con
Aluminum Organic Polymer Capacitors 270UF 10V SMD CAN SNBI
Data Sheet
0-1: $1.36
1-100: $1.00
100-400: $1.00
400-1000: $0.48
APXA100ARA271MHC0S
APXA100ARA271MHC0S
United Chemi-Con
Aluminum Organic Polymer Capacitors 270UF 10volt
Data Sheet
0-250: $1.01
250-400: $0.50
400-1300: $0.44
1300-3000: $0.39
APXA100ARA271MJ80G
APXA100ARA271MJ80G
United Chemi-Con
Aluminum Organic Polymer Capacitors 10V 270uF 10X7.7
Data Sheet
0-1: $1.27
1-10: $1.06
10-50: $0.99
50-100: $0.93
100-500: $0.61
