Product Summary

The C0603X680J5GACTU is a capacitor.

Parametrics

C0603X680J5GACTU absolute maximum ratings: (1)Capacitance: 68 pF; (2)Chip Size: 0603; (3)Voltage: 50V; (4)Temperature Coefficient: C0G; (5)Tolerance: +/-5%; (6)Application: Std Chip/Flexible Termination; (7)Termination Type: Tin; (8)Marked: No; (9)Dissipation Factor: 0.1%; (10)Insulation Resistance: 100 GOhm; (11)Dielectric Strength: 125V.

Features

C0603X680J5GACTU features: (1)Capacitance 68pF; (2)Voltage - Rated 50V; (3)Tolerance ±5%; (4)Temperature Coefficient C0G, NP0; (5)Mounting Type Surface Mount, MLCC; (6)Operating Temperature -55 ~ 125℃; (7)Applications Boardflex Sensitive; (8)Package / Case 0603 (1608 Metric); (9)Size / Dimension 0.063" L × 0.031" W (1.60mm × 0.80mm); (10)Height - Seated (Max); (11)Thickness (Max) 0.034" (0.87mm); (12)Features Soft Termination.

Diagrams

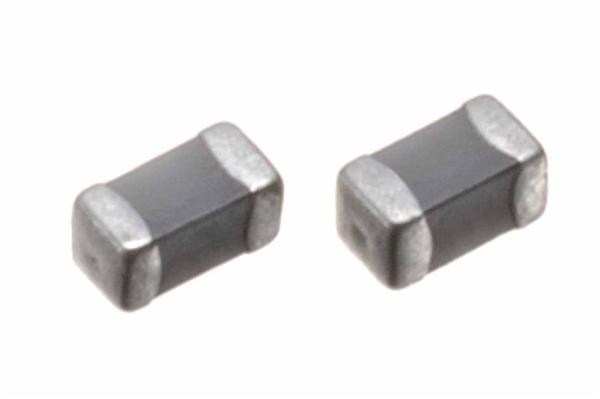

C0603X680J5GACTU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
C0603X680J5GACTU
C0603X680J5GACTU
Kemet
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 50volts 68pF 5% C0G
Data Sheet
0-1: $0.19
1-50: $0.12
50-100: $0.07
100-500: $0.05
