Product Summary
The C0805V562KBRACTU is a high voltage surface mount capacitor designed for use in high voltage applications susceptible to surface arcing (arc-over discharge). Typical applications of the C0805V562KBRACTU include switch mode power supplies (input filters, resonators, tank circuits,snubber circuits, output filters), high voltage coupling and DC blocking, lighting ballasts, voltage multiplier circuits, DC/DC converters and coupling capacitors in Ćuk converters. Markets include power supply, LCD fluorescent backlight ballasts, HID lighting, telecom equipment, industrial and medical equipment/control, LAN/WAN interface, analog and digital modems, and automotive (electric and hybrid vehicles, charging stations and lighting) applications.
Parametrics
C0805V562KBRACTU absolute maximum ratings: (1)Operating Temperature Range: -55 to +125℃; (2)citance Change with Reference to +25℃ and 0 VDC Applied (TCC): ±15%; (3)Aging Rate (Maximum % Capacitance Loss/Decade Hour): 3.0%; (4)Dielectric Withstanding Voltage (DWV): 150% of rated voltage for voltage rating of < 1,000 V; 120% of rated voltage for voltage rating of ≥ 1,000 V (5 ±1 seconds and charge/discharge not exceeding 50 mA); (5)Dissipation Factor (DF) Maximum Limit @ 25℃: 2.5%; (6)Insulation Resistance (IR) Limit @ 25℃: 100 megohm microfarads or 10 GΩ (500 VDC applied for 120 ±5 seconds @ 25℃).
Features
C0805V562KBRACTU features: (1)ArcShield (patent pending) technology; (2)Base metal electrode (BME) dielectric system; (3)Industry leading CV values; (4)-55 to +125℃ operating temperature range; (5)Exceptional performance at high frequencies; (6)Pb-Free and RoHS Compliant ; (7)EIA 0805, 1206, 1210, 1808, and 1812 case sizes; (8)DC voltage ratings of 500 V, 630 V, and 1 KV; (9)Capacitance offerings ranging from 2,200 pF to 0.33 μF.

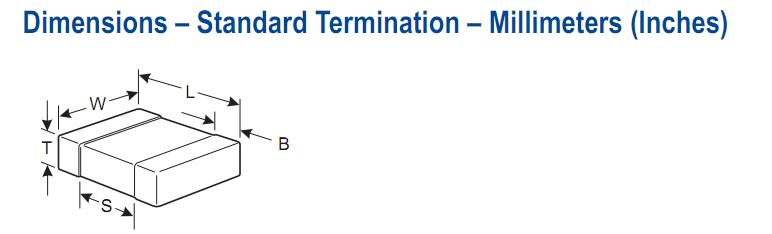

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 C0805V562KBRACTU |
Kemet |
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 630volts 5600pF 10% X7R |
Data Sheet |
|
|
||||||||||||
