Product Summary

The CRCW251247R0JNEGHP is a Pulse Proof, High Power Thick Film Chip Resistor.

Parametrics

CRCW251247R0JNEGHP absolute maximum ratings: (1)power rating: 1.5W; (2)limiting element voltage max.:150V; (3)resistance range: 1R0 - 10M Ω; (4)Weight/1000 pieces: 5.5g.

Features

CRCW251247R0JNEGHP features: (1)High volume product suitable for commercial and special applications; (2)Excellent stability (△R/R≤±1 % for 1000 h at 70℃); (3)Lead (Pb)-bearing solder contacts on Ni barrier layer; (4)Metal glaze on high quality ceramic; (5)Protective overglaze.

Diagrams

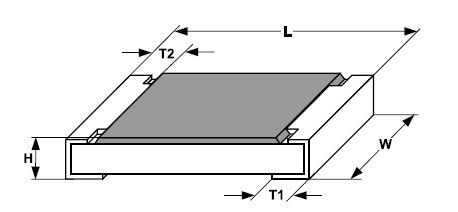

CRCW251247R0JNEGHP dimenisions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CRCW251247R0JNEGHP
CRCW251247R0JNEGHP

Vishay/Dale

Thick Film Resistors - SMD 1.5watts 47ohms 5% 200ppm High Power

Data Sheet

0-1: $1.00
1-25: $0.54
25-100: $0.31
100-1000: $0.21
1000-2000: $0.20
